HDPE Pipe Extrusion Line

HDPE Pipe Extrusion Line

Applications

Description

The HDPE pipe extrusion line is a series of machines and equipment that work together to produce high-density polyethylene pipes of various sizes and thicknesses. The extrusion process involves melting and shaping plastic pellets to create the desired pipe shape. The process is continuous, which means that the pipe can be produced in a long length.

  • Twin Screw provides extremely high-performance extrusion technology for the plastics production.
  • Cost-effective energy and Material saving.
  • HDPE pipe extrusion line can produce product range : 2mm – 400mm.
  • We offer the total solution from automatic-feeding system, coextrusion to winding or stacking even customized project.
  • Related Video

    The main components of an HDPE pipe extrusion line include:

    1. Extruder: The extruder is the heart of the extrusion line, responsible for melting and shaping the plastic pellets.

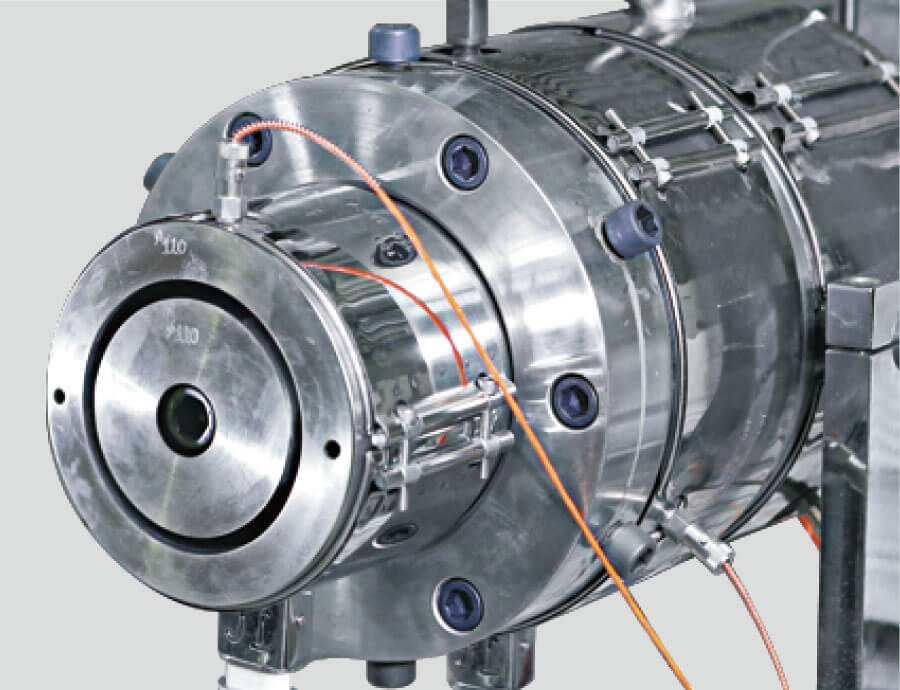

    2. Die head: The die head is responsible for shaping the melted plastic into the desired pipe shape.
    3. Vacuum tank: The vacuum tank is used to cool and solidify the pipe.
    4. Haul-off unit: The haul-off unit is responsible for pulling the pipe out of the extrusion line at the desired speed.
    5. Cutting unit: The cutting unit is used to cut the pipe into the desired length.
    6. Control system: The control system is used to control and monitor the entire extrusion line.
